Different Capacity Rotary Drum Trommel Screen for Mining Separation Gravity Separator

Introduction:Vibration Rotary Trommel Screen for sand, gold, stone, ore

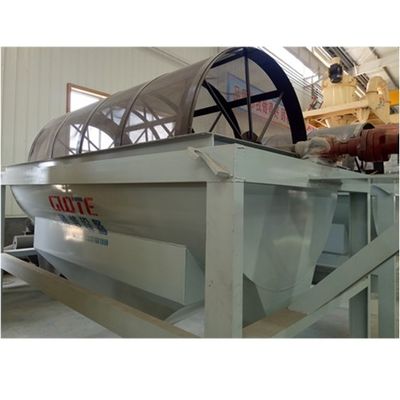

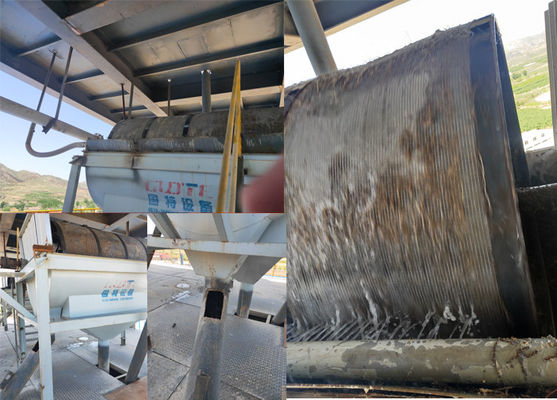

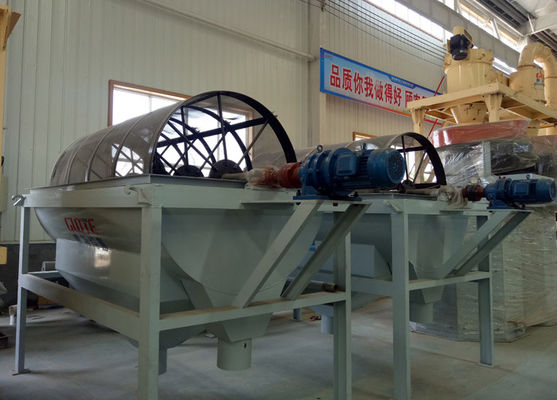

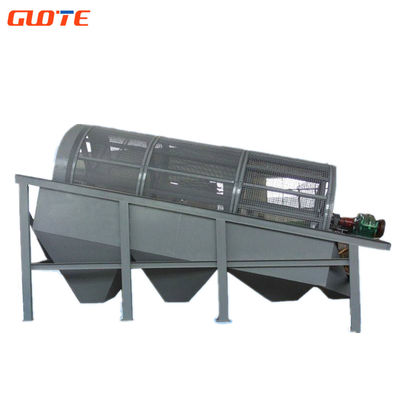

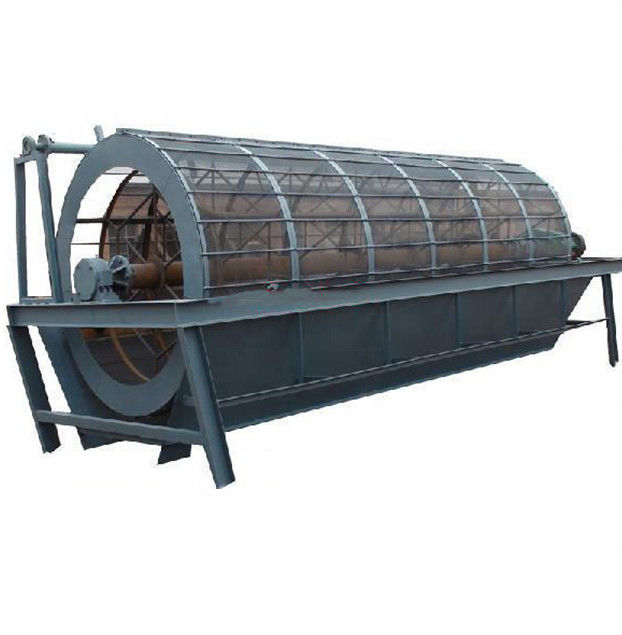

Trommel screen is also named drum screen, whic is consist of four parts: drum, undersize hopper, support base, drive device. When material feed into the drum, under the influence of large centrifugal force, material will make a sprial movement along with drum surface. Meanwhile, oversize materials was removed out of discharge outlet; qualified materials(different sizes) be collected in undersize hoppers. Then sent to be the next system by belt conveyor or other.

Product Feature : Vibration Rotary Trommel Screen for sand, gold, stone, orescreenTrommels are designed for high performance screening, classification and grading application. With over 50 years experience of it, our trommel screen has the following features: 1.Good performance, highest production rates, lowest input costs and long service life.  2.Capacity range of 7.5-1500 m3/hour of slurry, or 6-600 tons/hour of solids, per single trommel.  3.Speical design of screen makes it more durable than a common one. 4.Heavy duty jacking and adjustable stands, assist in rapid set up & assembly time.  5.High pressure spray bar network around the hopper and through out the length of the trommel.  6.Heavy duty roller supports (steel or rubber) wheels.  Portable mobile or stationary configuration.

 Application:Vibration Rotary Trommel Screen for sand, gold, stone, ore

1) Quarry: gravel, clay, mountain meal, sand, etc.  2) Coal Industry: lump coal, coal dust, coal washing, etc. 3) Cold Mine: gold screening and washing  4) Chemical Industry: sifting calcium oxide, compost 5) Metallurgy, construction, mineral-selecting, etc. 6) Recycling Industy: solid waste, scrap tires, plastic, etc.

Model  Capacity  Power  Screen Diameter Screen Length Discharge Size  Input Size  Dimension Weight

GT-1015 50 3 1000 1500 0-100 ≤300 2600*1400*1700 2200

GT-1020 100 4 1000 2000 0-100 ≤300 3390*1400*2150 2800

GT-1225 160 5.5 1200 2500 0-100 ≤300 4145*1500*2690 4200

 GT-1530  250  7.5  1500  3000   0-100   ≤300  4460*1900*2820  5100

GT-1545  350  11  1500  4500   0-100   ≤400  5960*1900*3080  6000

GT-1848  450  15  1800  4800   0-100  ≤400  6500*2350*4000  7500

GT2055  600  22  2000  5500   0-100  ≤400  7500*2560*4800  9600

  Weifang GUOTE Mining Equipment Co., Ltd. is one professional mineral equipment manufacturer for offering different machines and technical proposals for quartz deep-processing including crushing, magnetic separation and air-classifier processing. We also could offer EPC service including engineering design, equipment installation, commissioning services for different quartz products processing line. The company's main products are: Metal Detector , quartz sand processing equipment, air classifier, bag type dust-collector and grading machines, electromagnetic, permanent magnetic separator, dry wet magnetic separator, electromagnetic vibrating feeder, screw conveyor system and dosing machine, GMF Ball Mill and air Classifier Production Line,PLC control systems etc. Faced new opportunities and challenges, We will continue to take the spirit of "honesty, mutual benefit, cooperation and innovation," and dedicate to provide customers with "reliable, simple, efficient" products and services to enable our company to become a leading manufacturer of non-metallic mining equipment ompany Guote is willing to work together with different clients from worldwide and go hand in hand, to create a better future.

1. EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line .

3.Testing before delivery  and Pretesting in working site until get qualified products .

4.24hours for technical Operation Guide and  4hours offer technical proposal for problem shooting.

Q:How about your price ?
A:We are manufactory,and we can give you lower price than those trade companies.
Q:Do you have after-sales service?
A:Yes! The warranty on your products is one year, and we have a professional after-sales team to help you solve problem in time.

Q:Are you one trading company or factory?
A:We are one professional manufacturer of non-metallic mineral separation equipment ,EPC service supplier for engineering/Procurement/Construction .

Q:How about your payment terms?
A:Generally 30% in advance for deposit and the balance before shipment ;
 we accept  T/T, Western Union, Cash, L/C at sight. etc. ; Suggest Alibaba as third party for business.
