Silica Sand Attrition Scrubber for Quartz Sand Washing Plant Advanced 1222 KG Request

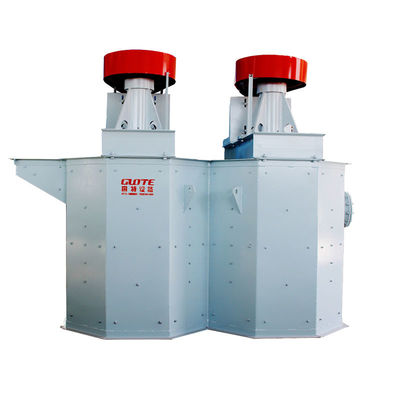

Large Image : Silica Sand Attrition Scrubber for Quartz Sand Washing Plant Advanced 1222 KG Request

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$6,000.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk,the spare parts in wooden case or according to the customer's requirements.
Supply Ability:	100 Set/Sets per Month sand scrubber

Contact Now

Silica Sand Attrition Scrubber for Quartz Sand Washing Plant Advanced 1222 KG Request

Description

Applicable Industries:	Manufacturing Plant, Energy & Mining	Showroom Location:	Viet Nam, Indonesia, India, South Korea, Sri Lanka, Malaysia, Australia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Engine, Motor	Condition:	New
Motor Type:	AC Motor	Capacity(t/h):	Depends
Dimension(LWH):	Different Models	Weight:	1222 KG, Different Model
Warranty:	12month	Application:	Sand
Color:	Request	Installation:	Engineers Guide
Usage:	Clay Ore Washing	Type:	Wheel Sand Washing Equipment
Dimensions:	Different Model	Power:	Different Model
Keyword:	Sand Scrubber Machine	Port:	Qingdao

Sand Scrubber Machine for Silica Sand Washing Plant

Product Introduction:

It is mainly used for the dispersion of mineral mud and the removal of mineral surface impurities.
Feeding particle size : < 5mm
Effective volume : 1-8.4m³
Capacity : 5-40t/h

Outstanding advantages:

1.The intensity of scrubbing is large, the unique tank structure and impeller configuration are increased by about 30% compared to the conventional scrubbing machines of the same size.
2.Wear resistant, corrosion resistant, tank lining and impeller are all wear resistant materials, with high anti-corrosion and
wear resistance

Working principle:

The ore slurry enters the cavity of the scrubbing machine , at the action of the strong stir of the impeller,the ore slurry produces violent turbulence.
The ore particles have great momentum and there is a lot of friction and collision . The impurities on the surface of the ore are easily removed from the mineral surface by friction and impact due to their low strength. However, the cementites on mineral surface will be loose and broken up after being soaked by water and then after the strong friction collision between ore particles, so as to achieve the separation of clay and ore particles . These film impurities and clay-matter are broken down into the slurry, which can be separated out after subsequent desliming . In the actual production process, different agents should be added according to the actual conditions of the mineral

PRODUCT SPECIFICATIONS

Model	Cubage (m3)	Feeding particle size (mm)	Slurry concentration	Power (KW)	Weight (T)	Capacity (T/H)
GSC1-1	1	0-5	＜65%	15	1.2	10
GSC1-2	2					10	15x2	2.4
GSC2-1	2					30	2.1	25
GSC2-2	4					30x2	3.5	25
GSC4-1	4					75	3.2	40
GSC4-2	8					75x2	5.3	40

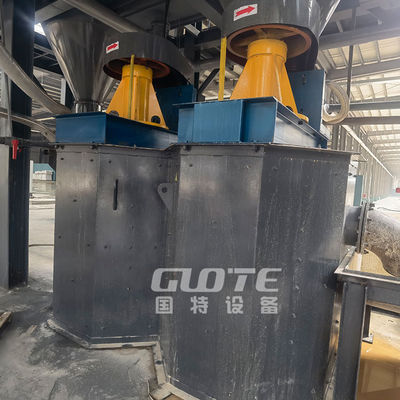

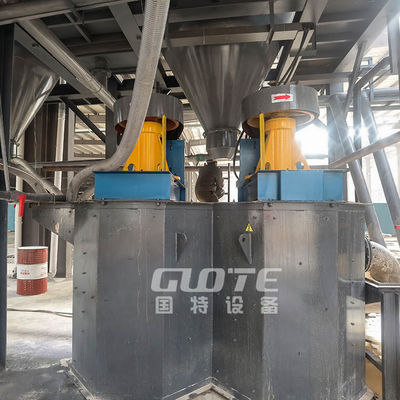

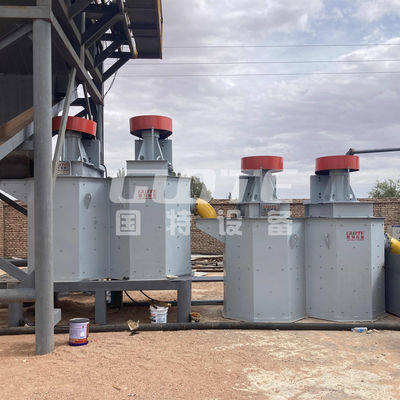

Successful Project

Project 1

Project 2

Project 3

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

our laboratory

Certifications

Customer Photos

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.

Services，packing，FAQ

1.EPC service for single equipment and whole production line. 2.OEM service for your personal equipment or production line 3.Testing before delivery and Pretesting in working site until get qualified products 4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Q: Why we believe in Weifang GuoteMining Equipment Company? A: 1. More than 10 years experience. Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry. A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms A: Accepted Payment Type: T/T, L/C, Western Union, Cash.

After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery. Q: What will you do if the machine is broken down?

A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality
