Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size

Large Image : Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$20,000.00/sets 1-1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk,the spare parts in wooden case or according to the customer's requirements.
Supply Ability:	100 Set/Sets per Month sand hydraulic classifier

Contact Now

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size

Description

Applicable Industries:	Manufacturing Plant, Energy & Mining	Showroom Location:	Viet Nam, Indonesia, India, South Korea, Sri Lanka, Malaysia, Australia
Condition:	New	Type:	Hydraulic Classifier
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	Different Size	Weight:	1000 KG
Warranty:	12 Months	Marketing Type:	Hot Product 2019
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC
Key Selling Points:	Energy Saving	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Application:	Mineral Course And Fine Particles	Color:	Customers' Request
Installation:	Engineer Guide	Feeding Particle Size:	< 5mm
Grading Range:	0.4mm-0.04mm	Water Consumption:	Depend On Different Models
Price:	Negotible	After Sale Service:	Maintenance
Function:	Screening\separation\sorting\sieving	Port:	Qingdao/Shanghai/Dalian

hHydrocyclone Water Filter Sand Classifying Equipment Cyclone Separator Sand hydraulic classifier

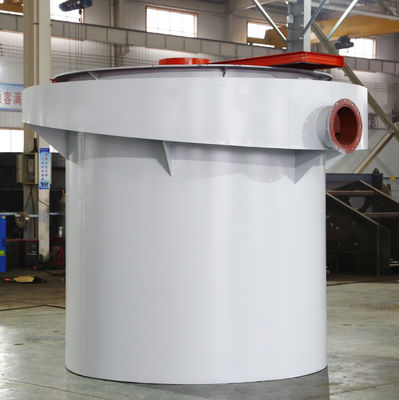

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 0

Product Description

Product Introduction :

Hydraulic classifier is a kind of particle size classifier. It has the advantages of high efficiency, low energy consumption and no noise. It is an equipment system in the field of mineral classification

It is mainly used for fine grading of coarse and fine mineral particles

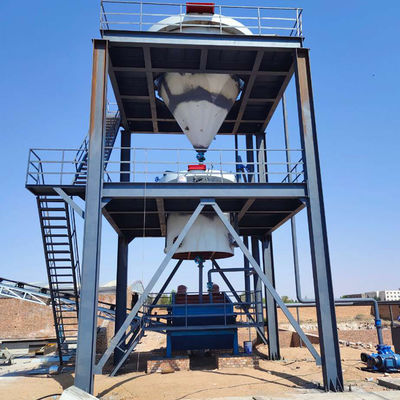

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 1

Application scope :

mainly used for strict grinding and selection of silica sand used in various industries ;grinding of coal powder and shale in the coal industry

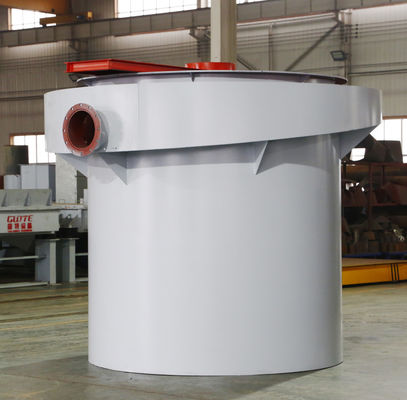

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 2

Advantages :

1. The material is subjected to the action of upwelling water in the barrel to achieve the purpose of particle size grading and specific gravity separation, with high production efficiency and low energy consumption

2. Equipped with automatic control system, the adjustment of operation parameters is simple and convenient, easy to control

3. The water tank at the bottom of the barrel is equipped with special device. When the water is stopped, the rising water hole is closed automatically .The materials in the cylinder body will not block the hole and enter into the tank .

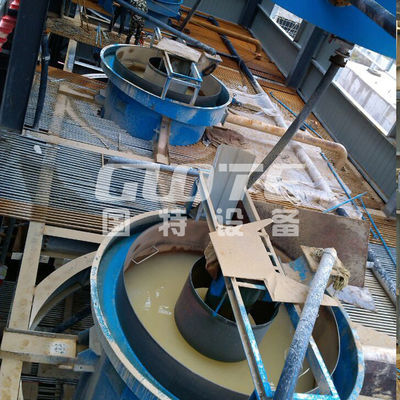

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 3

Sturcture and principle:

1. Mixing chamber: the grading is carried out under the condition of high slurry concentration because the coarse grains are sunk.

2. Grading room: regrading in rising water flow can be observed by glass Windows.

3.. Vortex chamber: feed water with high pressure.

4.. Lifting rod: tapered plug is provided at the lower end, and the size of stage clearance (grade ore grain size) is controlled by the screw rod.

5.. Sand sinking box (buffer box) : to prevent the destruction of the grading process of the jet stream in the process of sediment discharge, so as to ensure the normal continuous ore discharge.

Technical parameter:

Model	Feed size (mm)	Classification scope (mm)	Capacity (t/h)	Water consumption (m3/h)	Weight (kg)
GSF1200	< 5	0.4-0.04	3-7	10-15	820
GSF1500	< 5	0.4-0.04	7-10	15-20	1200
GSF1800	< 5	0.4-0.04	10-15	20-30	1770
GSF2100	< 5	0.4-0.04	15-20	30-40	2540
GSF2400	< 5	0.4-0.04	20-25	40-60	3260
GSF3000	< 5	0.4-0.04	25-40	50-80	4160

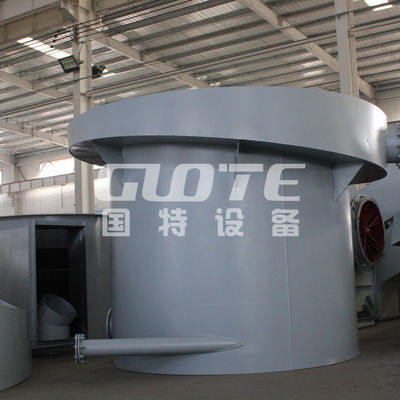

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 4

Company Information

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 5

Certification:

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 6

Our customers :

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 7

Our Services

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Packaging & Shipping

Hydrocyclone Sand Classifier for Water Filtration and Grading Dimension Different size 8

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
