Motor Core Components Conveyor Belt Dry Magnetic Separator for Remote Site Control

Large Image : Motor Core Components Conveyor Belt Dry Magnetic Separator for Remote Site Control

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$38,800.00/sets 1-4 sets
Packaging Details:	Containers or according to customer requirements
Supply Ability:	500 Set/Sets per Month

Contact Now

Motor Core Components Conveyor Belt Dry Magnetic Separator for Remote Site Control

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator, Permanent Magnet Or Electromagnetic
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	1900735935	Weight:	750 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Easy To Operate, Self-discharging	Application:	Iron Removal
Belt Width:	500-2000mm	Keywords:	Iron Separator
Machine Type:	Beneficiation Equipment	Advantage:	Self Discharging
Cooling Type:	Oil Cooled	Magnetic Intencity:	Nlt700gs
Overband Magnets Capacity:	As Required	Port:	QINGDAO

Product Description

Introduction

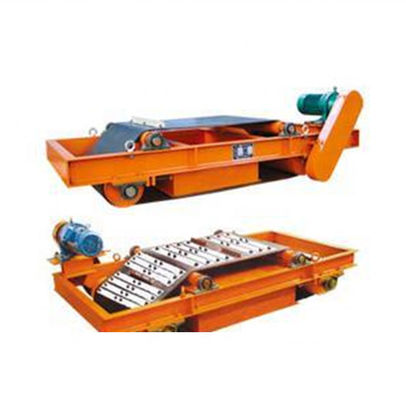

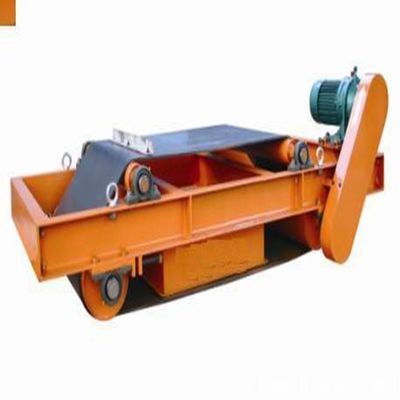

Guote RCYD Self-cleaning Permanent Magnetic Separators for belt conveyor is made up with permanent magnetic chip , iron-discharging belt, reducer, frame and roller etc. and can match with all kinds of conveyors.
It is used to eliminate the ferromagnetic material weighing from 0.1kg to 35kg .we adopt the computerized simulating and make it still work in the harsh environment for a long period.

Specification

Features:
1)High magnetic field intensity, usually used in occasions with plenty of iron.
2)The wholly sealed structure makes the separator water-proof, dust- proof and corrosion resisting.
3)Made of rare earth NdFeB
4)High gauss
5)Energy saving
6)Easy to install and convenient to use.
7)High efficiency and stable performance.
8)Good operational reliability and flexibility

Model	Belt width (mm)	Magnetic strength (MT)	Material thickness (mm)	Driving power (kw)	Belt speed (m/s)
RCYD-6	600	60	120	1.5	4.5
RCYD-8	800	70	200	2.2
RCYD-10	1000	70	250	3
RCYD-12	1200	70	300	4
RCYD-14	1400	70	350	4
RCYD-16	1600	70	400	5.5
RCYD-18	1800	72	450	5.5
RCYD-20	2000	72	500	7.5
