Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage

Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage

Large Image :  Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3,000.00/sets >=1 sets
Contact Now

Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage

Description
Applicable Industries: Manufacturing Plant, Energy & Mining Showroom Location: Viet Nam, Philippines, Indonesia, India, Russia, Thailand, Sri Lanka, Uzbekistan, Malaysia, Australia
Condition: New Type: Magnetic Separator
Production Capacity: 98% Voltage: 220V/380V
Dimension(L*W*H): 1900*735*935 Weight: 750 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Self-discharging Application: Iron Removal
Rated Hang Height: 150mm-550mm Belt Width: 500-2000mm
Type:: Permanent Magnet Or Electromagnetic Keywords: Iron Separator
Color: Customers' Requirements Machine Type: Beneficiation Equipment
Installation: Engineer Guide Advantage: Self Discharging
Quality: China Standard

Product Description
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 0
Introduction
Guote RCYD Self-cleaning Permanent Magnetic Separators for belt conveyor is made up with permanent magnetic chip , iron-discharging belt, reducer, frame and roller etc. and can match with all kinds of conveyors.
It is used to eliminate the ferromagnetic material weighing from 0.1kg to 35kg .we adopt the computerized simulating and make it still work in the harsh environment for a long period.
Specification
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 1

Features:
1)High magnetic field intensity, usually used in occasions with plenty of iron.
2)The wholly sealed structure makes the separator water-proof, dust- proof and corrosion resisting.
3)Made of rare earth NdFeB
4)High gauss
5)Energy saving
6)Easy to install and convenient to use.
7)High efficiency and stable performance.
8)Good operational reliability and flexibility
Model
Belt  width (mm)
Magnetic strength (MT)
Material thickness (mm)
Driving power (kw)
Belt speed (m/s)
RCYD-6
600
60
120
1.5
4.5
RCYD-8
800
70
200
2.2
RCYD-10
1000
70
250
3
RCYD-12
1200
70
300
4
RCYD-14
1400
70
350
4
RCYD-16
1600
70
400
5.5
RCYD-18
1800
72
450
5.5
RCYD-20
2000
72
500
7.5
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 2
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 3
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 4
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 5
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 6

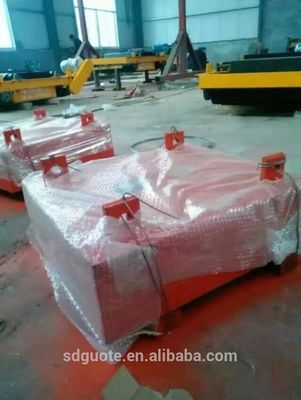

Packing and shipping
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 7
Recommend Products
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 8

RCYB Iron Separator

Permanent Magnetic Type
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 9

RCYD Iron Separator

Permanent Magnetic Type
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 10

RCYF Pipeline Iron Separator

Permanent Magnetic Type
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 11

RCDB Iron Separator

Electromagnetic Type
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 12

RCDD Iron Separator

Electromagnetic Type
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 13

RCYZ Pipeline Iron Separator

Permanent Magnetic Type
Company Profile
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 14
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 15
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 16
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 17
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 18
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 19
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 20
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 21
Certifications
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 22
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 23
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 24
Customer Photos
Standard Overband Suspended Iron Separator for Conveyor Belt Self Discharging Advantage 25

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
Contact Information
Weifang Guote Mining Equipment Co., Ltd.
Contact: Yolanda (Sales manager)
Mobile :+86 156 8429 0980 whatsapp/wechat)
Add: Dongjing Road East, Industrial Zone,Qingzhou City, Weifang,Shandong Province, P.R.China
E-mail: yolanda@sdguote.com
Alibaba website: http://sdguote.en.alibaba.com/
Webstie: www.guotegroup.com

If you have any questions, pls don't hesitate to contact me. We will reply you ASAP.
