Product Introduction:

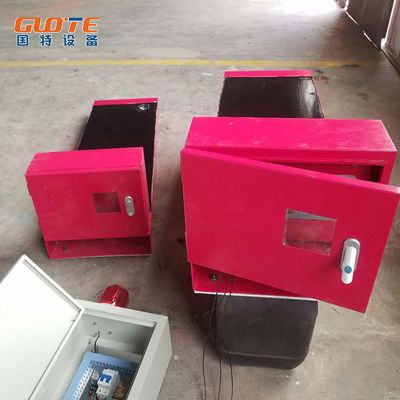

The plate detector is made of all-metal shell with a metal thickness of 4.0mm, which is shock-proof and anti-collision, waterproof and anti-pressure.
The plate detector inherits all the techniques and advantages of the window detector produced by the national special equipment,

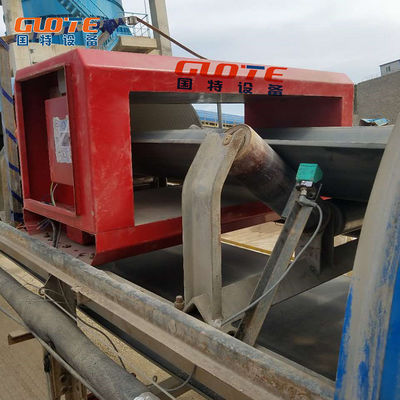

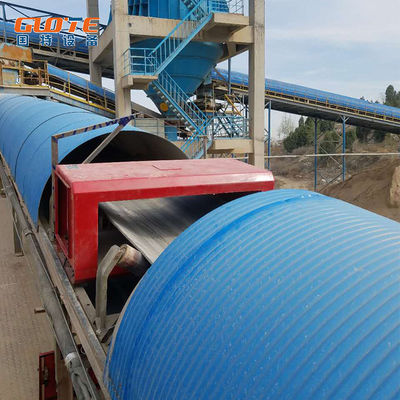

It is more suitable for the testing environment of the stone mining industry, with proper sensitivity, solid stability and, more importantly, high cost performance.
Outstanding advantages:
1. When the dual-core CPU is processed and the detector is running at high speed, there is no hiding place for harmful metals
2. The integrated intelligent recognition program can make the detector shine its intelligent eyes and bid farewell to the remote analog operation era
3. Circuit board full patch processing, strong vibration resistance, not easy to loose, stable and reliable
4. The circuit board is treated with special technology to prevent water, rust and dust
5. Key operation, as desired, sensitivity can be from 1-100 to any value
6. Special isolation transformer ensures the power supply is as stable as mount tai
Technical parameter:
| Model | Belt Width (mm) | Sensitivity (≥mm) | Belt Speed (m/s) | Overall Dimension(mm) |
| A | B | C | D | E | L |
| GJF-F-5 | 500 | 15 | 0.8-3.5 | 850 | 690 | 300 | 460 | 280 | 770 |
| GJF-F-6 | 650 | 20 | 1000 | 840 | 300 | 460 | 920 |
| GJF-F-8 | 800 | 25 | 1300 | 1040 | 320 | 480 | 1220 |
| GJF-F-10 | 1000 | 30 | 1400 | 1240 | 350 | 510 | 1320 |
| GJF-F-12 | 1200 | 35 | 1600 | 1440 | 400 | 560 | 1500 |
| GJF-F-14 | 1400 | 40 | 1840 | 1680 | 450 | 630 | 1740 |
| GJF-F-16 | 1600 | 45 | 2040 | 1880 | 470 | 650 | 1940 |
| GJF-F-18 | 1800 | 50 | 2300 | 2140 | 470 | 650 | 2180 |
| GJF-F-20 | 2000 | 55 | 2500 | 2340 | 470 | 650 | 2380 |
Working principle:
When the harmfulmetals in the material pass through the sensor, the metal detector alarm, and give the control signal, through the electronic technology to deal with it and drive the actuator(electromagnet, motor switch) action, so as to dischargeharmful metal, and can also be picked up manually.

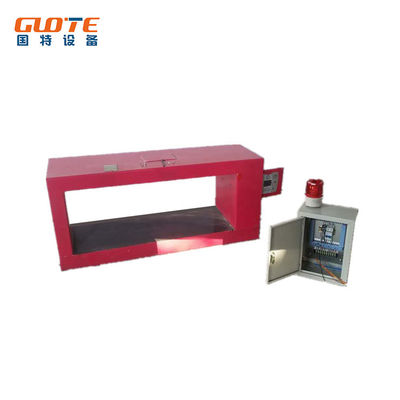

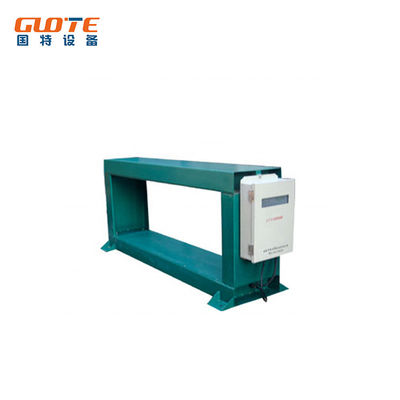

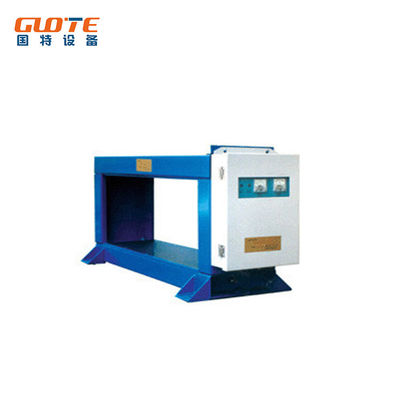

The sensor is a window type, a detachable structure, no need to cut off the adhesive tape, and convenient installation.
